Our Products

Ventomist Provides You with All that a High Quality Misting Fan Should Offer



Ventomist is a go-anywhere, highly portable and self-contained misting units that incorporates many innovative features, making them unique in the misting fan and misting systems marketplace. We utilize the highest quality components; our dedication to quality sets our company and products apart from the competition. All of our high-pressure misting units are heavy duty, industrial grade rated and come come with a CE certification.

18" Portable Misting Fan

18” PORTABLE MISTING FAN
VTHPMF-1805

  • 18” oscillating fan head, three speed, 0.15 H.P.
  • 0.5 LPM high pressure misting pump
  • 24-hour digital control panel
  • Adjustable height, oscillating fan head
  • 16 Gallons Water Reservoir
  • Stainless steel misting rings and nozzles
  • Dimensions: 74.8″ H. x 21.3″ W. x 27.6″ Depth
  • Weight: 108 lbs. – 49 kgs.
  • Air Flow: 5,900 CFM
24" Portable Misting Fan

24” PORTABLE MISTING FAN
VTHPMF-2405

  • 24” oscillating fan head, three speed, 0.27 H.P.
  • 0.5 LPM high pressure misting pump
  • 24-hour digital control panel
  • Adjustable height, oscillating fan head
  • 16 Gallons Water Reservoir
  • Stainless steel misting rings and nozzles
  • Dimensions: 78.7″ H. x 26″ W. x 27.6″ Depth
  • Weight: 116 lbs. – 53 kgs.
  • Air Flow: 9,150 CFM
30" Portable Misting Fan

30” PORTABLE MISTING FAN
VTHPMF-3010

  • 30” oscillating fan head, three speed, 0.27 H.P.
  • 1 LPM high pressure misting pump
  • 24-hour digital control panel
  • Adjustable height, oscillating fan head
  • 16 Gallons Water Reservoir
  • Stainless steel misting rings and nozzles
  • Dimensions: 81.1″ H. x 32.7″ W. x 27.6″ Depth
  • Weight: 120 lbs. – 54 kgs.
  • Air Flow: 8,865 CFM

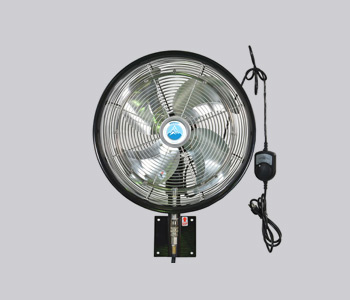

18" Wall mount Misting Fan

18” OSCILLATING MISTING FAN HEAD
VTPFH-18B-OSC-WM

  • 18” oscillating fan head, three speed, 0.15 H.P.
  • Adjustable swiveling and oscillating fan head
  • Includes wall mount, stainless steel misting ring and nozzles and anti-drip mechanism
  • Metal fittings covered in electrolysis nickel plating to avoid corrosion and water contamination (for food grade misting in restaurants and food processing plants)
  • Dimensions: 21.3″ H x 21.3″ W x 15″ Depth
  • Weight: 24.3 lbs. – 11 kgs.
  • Air Flow: 5,900 CFM
24" Wall mount Misting Fan

24” OSCILLATING MISTING FAN HEAD
VTPFH-24B-OSC-WM

  • 24” oscillating fan head, three speed, 0.27 H.P.
  • Adjustable swiveling and oscillating fan head
  • Includes wall mount, stainless steel misting ring and nozzles and anti-drip mechanism
  • Metal fittings covered in electrolysis nickel plating to avoid corrosion and water contamination (for food grade misting in restaurants and food processing plants)
  • Dimensions: 26″ H x 26″ W x 13.4″ Depth
  • Weight: 33 lbs. – 15 kgs.
  • Air Flow: 9,150 CFM
30" Wall mount Misting Fan

30” OSCILLATING MISTING FAN HEAD
VTPFH-30B-OSC-WM

  • 30” oscillating fan head, three speed, 0.27 H.P.
  • Adjustable swiveling and oscillating fan head
  • Includes wall mount, stainless steel misting ring and nozzles and anti-drip mechanism
  • Metal fittings covered in electrolysis nickel plating to avoid corrosion and water contamination (for food grade misting in restaurants and food processing plants)
  • Dimensions: 32.7″ H x 32.7″ W x 10.2″ Depth
  • Weight: 48.5 lbs. – 2 kgs.
  • Air Flow: 8,865 CFM
Dual Misting Fan

PORTABLE DUAL 30″ MISTING FAN
VTHPMF-2X-3015-NP

  • Two 30″ fan heads, three speed, 0.27 H.P.
  • 1.5 LPM high pressure misting pump
  • 24-hour digital control panel
  • Adjustable height, oscillating fan head
  • Stainless steel misting rings and nozzles
  • Dimensions: 94.7″ H. x 32.7″ W. x 26.7″ Depth
  • Weight: 296.3 lbs. – 134 kgs.
  • Air Flow: 8,865 CFM on each fan head
Portable Misting Fan

36” PORTABLE MISTING FAN
VTHPMF-3615-QP

  • 36” adjustable fan head, variable speed
  • 1.5 LPM high pressure misting pump
  • 24-hour digital control panel
  • Stainless steel misting rings and nozzles
  • Dimensions: 69.7″ H x 51.3″ W x 23.1″ Depth
  • Weight: 292 lbs. – 132 kgs.
  • Air Flow: 15,000 CFM
Wall Mounted Misting Fan

36” WALL MOUNTED MISTING FAN
VTHPFMF-3615-QP

  • 36” adjustable fan head, variable speed
  • 1.5 LPM high pressure misting pump
  • 24-hour digital control panel
  • Stainless steel misting rings and nozzles
  • Dimensions: 57.5″ H x 45.1″ W x 16.5″ Depth
  • Weight: 262 lbs. – 119 kgs.
  • Air Flow: 15,000 CFM

All of our units come equipped with the following standard features:

  • Dual ceramic piston

    (0.5 and 1.0 liter/min capacity) high pressure misting pumps (1,000 PSI).

  • Stainless steel misting rings

    6 or 8 nozzle capacity stainless steel misting rings with inline filter at the ring base.

  • Stainless steel anti-drip nozzles

    0.15 or 0.20 mm orifice stainless steel anti-drip nozzles with incorporated filter.

  • Digital control panel

    24-hour digital control panel with different programmable functions and settings, for a worry-free and hands-free operation.

  • Wireless remote control

    Wireless remote control to operate our units from a distance.

  • Power cord reel-in bracket

    Power cord with clamp style plug for easier storage of unit.
